PACKAGE SORTER P&P SYSTEM
Automatic package sorting equipment is available for package transfer to different type of carrier. It is equipped with automatic optical inspection and sorting function.
- System Features
-

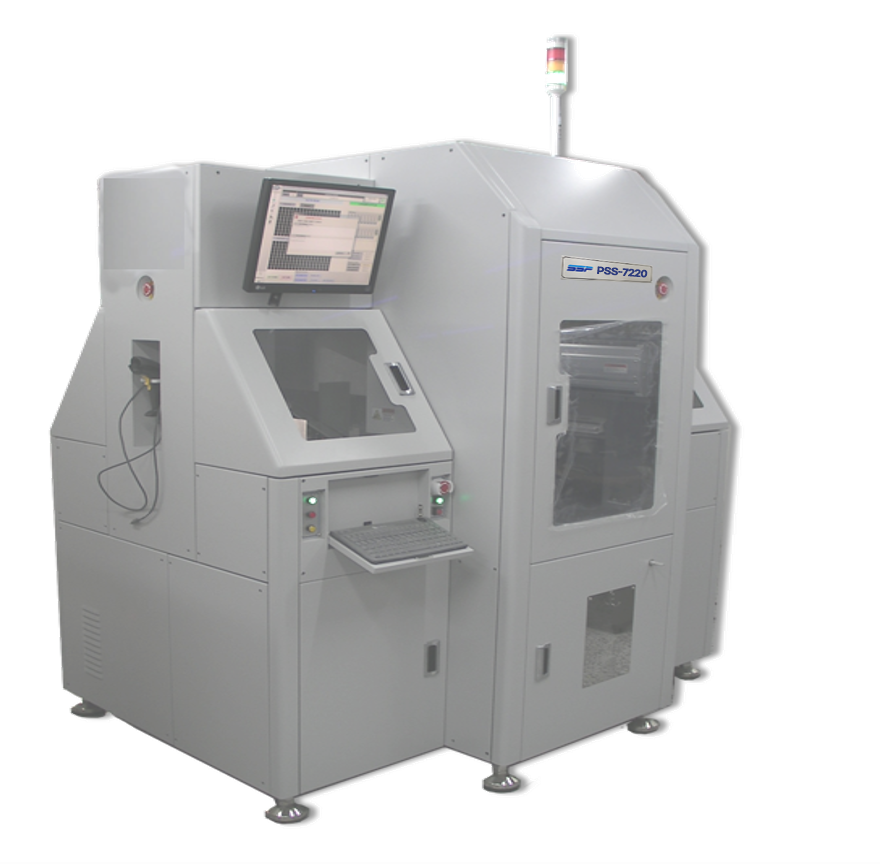

▶ Tray-to-boat P&P system
▶ Carrier format: 130-210mm(L) x 250-320mm(W), Matrix type of boat and JEDEC standard tray format
▶ Foot print: 2700mm(L) x 1350mm(W) x 1820mm(H)
▶ Weight: 2500kg
- System Performance
-
▶ UPH: Min 6000ea at 40-up boat
▶ Conversion part and time: Less than 150min with boat transfer table and picker
- System Features
-

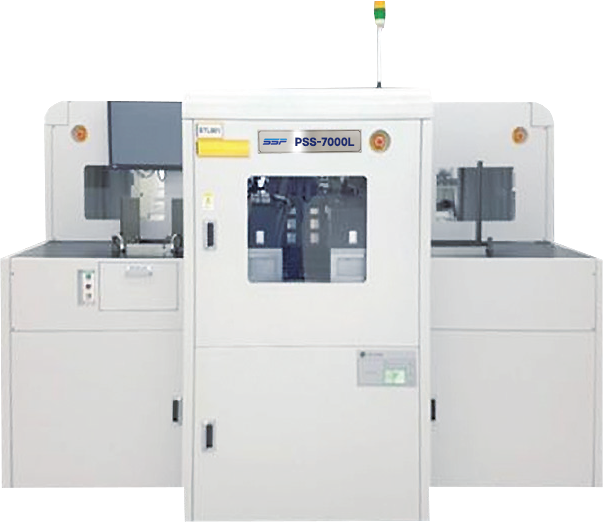

▶ Boat-to-tray P&P system
▶ Application package: 160-210mm (W) x 270-310 (L)
▶ Product type allowable: All kinds of boat handling flip chip package
▶ Foot print: 2700mm(L) x 2000mm(W) x 1800mm(H)
- System Performance
-
▶ UPH: 6000 (40up boat)
▶ Inspection system
▷ Flying type PRS system
▷ Unit orientation and position
▶ Conversion part: Boat and tray transfer table, Unit picker pad
- System Features
-

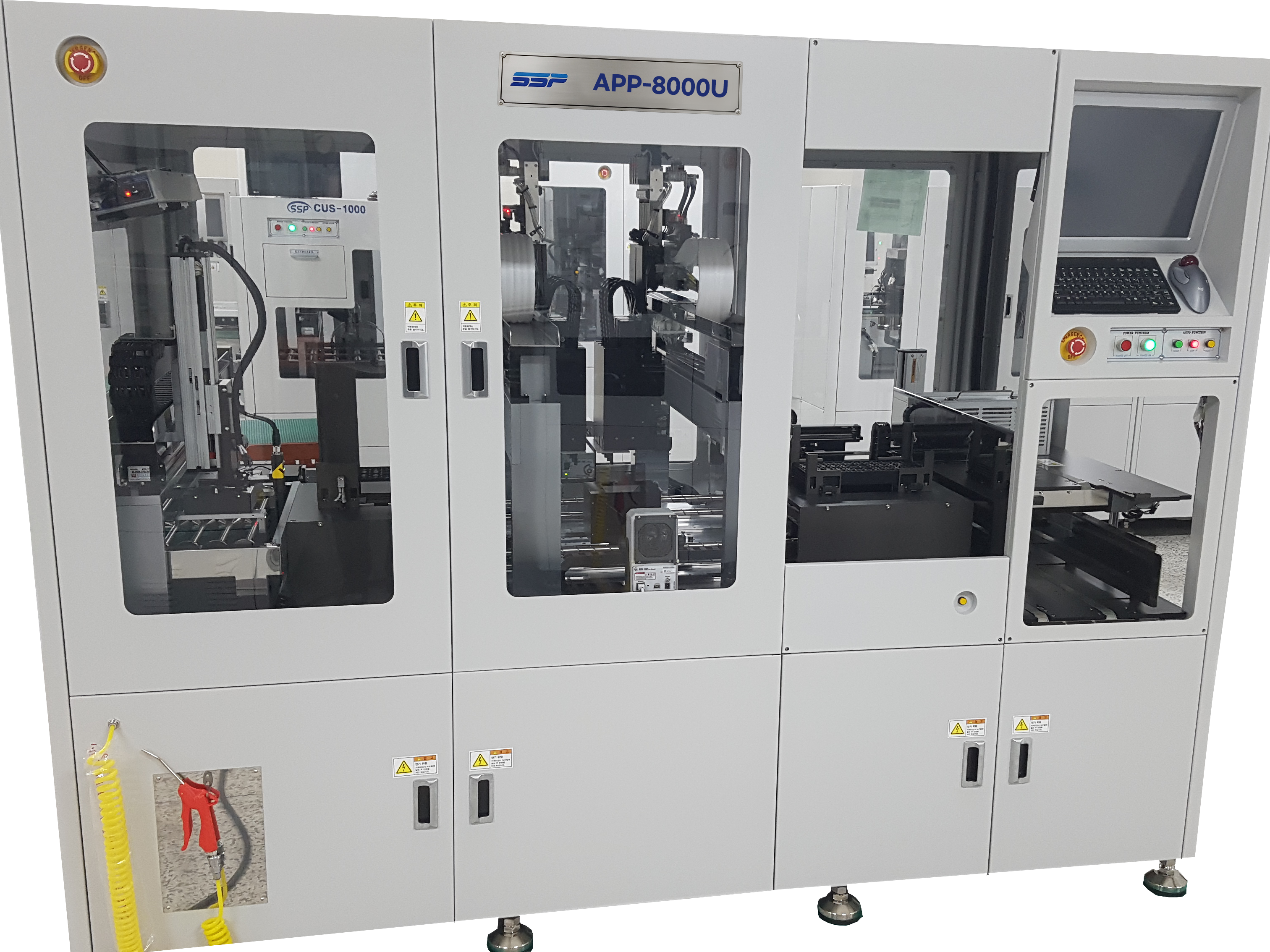

▶ Boat-to-tray P&P system
▶ Scope: FCBGA
▶ Substrate format: Carrier boat to tray loading
▶ Footprint: 2700mm(L) x 1800mm(W) x 1800(H) including conveyor
▶ Foot weight: 2300kg
- System Performance
-
▶ Yield: 99.9%
▶ UPH: 6000 (40up)
▶ Changeover time: Smart too kit design for easier device change
- System Features
-

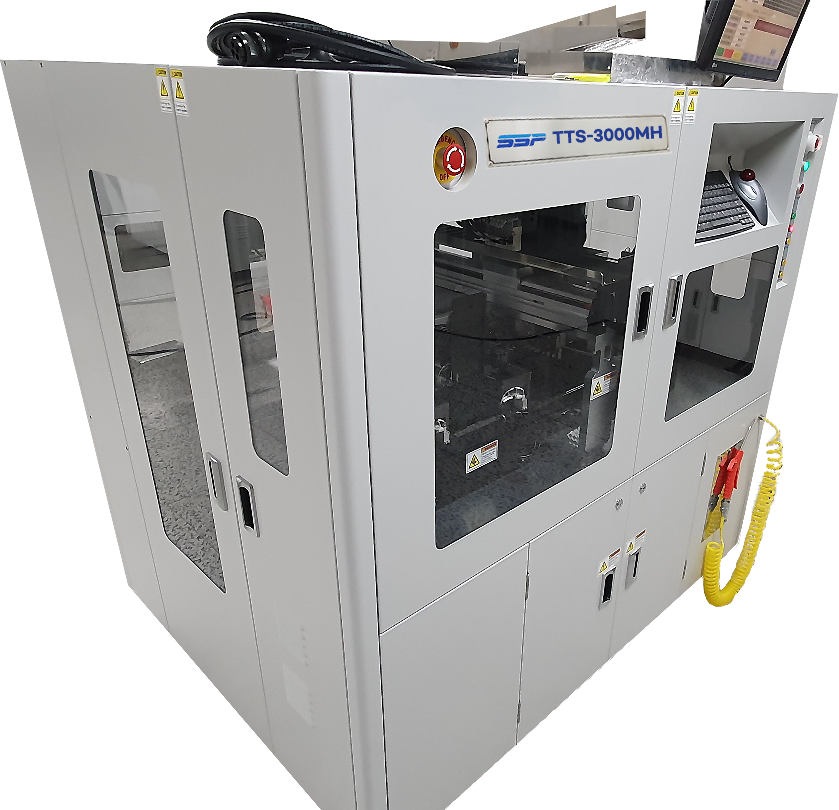

▶ Tube-to-tray / Tray-to-tube P&P system
▶ Carrier format: Plastic tube and JEDEC tray
▶ Applicable package: TSOP, PLCC and BGA
▶ Foot print: 1450mm(L) x 1100mm(W) x 1350mm(H)
- System Performance
-
▶ UPH: 4300ea
▶ Quick conversion time: Less than 30min for same package family
- System Features
-

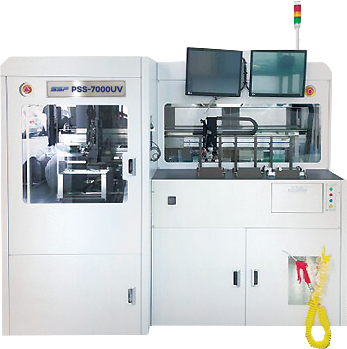

▶ Tray-to-tray P&P system
▶ Applicable package type: 3x3 - 20x20mm, LGA/BGA
▶ Picker configuration: 10 pickers x 2 heads
▶ Foot print: 1750mm(L) x 1450mm(W) x 1930mm(H)
▶ Weight: 3500kg
- System Performance
-
▶ UPH: 1400ea
▶ Yield: 99.9%
▶ Placement accuracy: ±0.08mm
▶ Quick conversion time: Less than 5min with picker pad and precise tool
- System Features
-

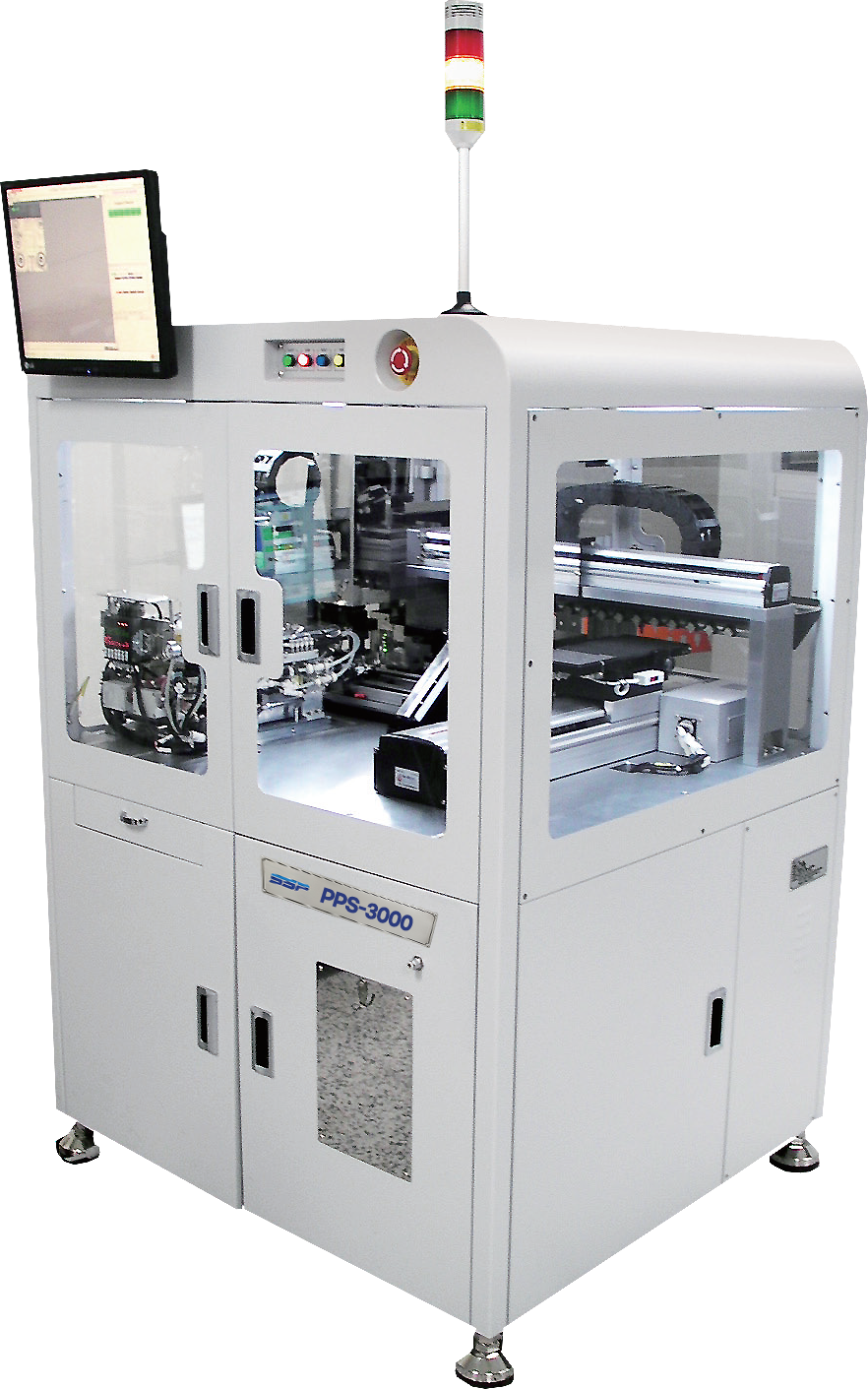

▶ Bowl feeder-to-tray P&P system
▶ Applicable package: MLF or LGA
▶ Foot Print & Weight : 1100(L) × 1020(W) × 1550(H)
▶ Foot Weight : 900kg
- System Performance
-
▶ UPH : 2,500ea (Full Vision) / 3,500ea (Top Vision) / 4,000ea (Without Vision)
▶ Yield : 99.9%
▶ Package body size to handle : 1.6×1.6mm ~ 20×20mm
▶ Quick Conversion Time : Less than 10 min
- System Features
-

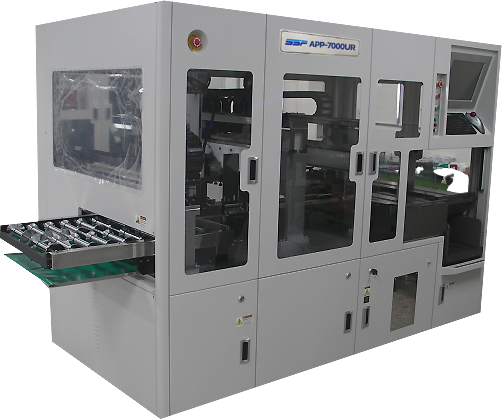

▶ Tray-to-SQ frame P&P system for EMI shielding process
▶ Applicable package: (LGA or BGA)
▶ Picker : 10~12 Pickers x 2 Heads
▶ Footprint: 2000mm(L) x 1860mm(W) x 1650(H)
▶ Foot weight: 2500kg
- System Performance
-
▶ Placement accuracy: ±50um with theta axis
▶ Allowable unit size: 3x3mm - 20×20mm
▶ Yield: 99.99%
▶ UPH: 13,000
▶ Changeover time: Less than 20min for picker pad change
- System Features
-
▶ SQ frame-to-tray P&P system for EMI shielding process
▶ Applicable package: LGA or BGA
▶ Footprint: 2050mm(L) x 2000mm(W) x 1800(H)
▶ Foot weight: 2500kg
▶ Reject sorting : Rework Tray
- System Performance
-
▶ Vision System
▷ Top frame alignment: 1.4K (FOV 20.0×15.0, Resolution 14um)
▷ Top picker alignment: 5M (FOV 22.0×16.0, Resolution 9um)
▷ Bottom alignment: 4M (FOV 20.5×20.5, Resolution 10um)
▶ Motion Picker : 10ea × 2set (individual Z, T Motion) - Detach Picker × 2set
▶ Placement accuracy: ±50um with theta axis
▶ Allowable unit size: 3x3mm - 20×20mm
▶ Yield: 99.9%
▶ UPH: 10,000~12,000 (Based on 860Unit/ Frame)
▶ Changeover time: Less than 20min as using picker pad
